58mm PCD cutting blanks and pcd tips for diamond tool inserts tips or nibs
PCD is more resistant over natural diamond because of its random orientation structure of the diamond particles, and is backed by a carbide substrate.
The standard shape of RJ PCD Cutting Tool Blanks is round. Other shapes, such as rectangle, triangle, square, semi-circle and so on, can also be customized per customers' requirements.
RJ PCD Cutting Tool Blanks are available in 5 micron, 10 micron, 25 micron, and so on, mostly used for high precision cutting of non-ferrous metal (copper, aluminum, alloy ), finish processing of non-metal materials (porcelain, synthetic fibre, graphite materials), and wear resistance materials for surveying instruments, steering equipment, and supporting tools etc.
Advantages of PCD tool blanks:
1. Long working life.
2. Uniform surface finish.
3. Reduces machine down time.
4. Highly improved work piece quality and excellent dimensional control.
5. Increase productivity.
6. High material removal rate.
7. Lower cost per piece.
8. The working life of a PCD cutting edge is usually 50 to 250 times longer than that of traditional sintered carbide cutting tools.
PCD Cutting Tool Blanks Application Recommendation:
| Grades | Characters | Applications | Advantages |
| W5 fine grain size | 1.Average grain size:5μm
2.High diamond content over90%
3.Laser cutting or wire EDM cutting | Aluminum, Brass/ Copper, Precious metals, Wood composites, Plastic | Excellent surface finish |
| W10 medium grain size | 1.Average grain size:10μm
2.High diamond content over90%
3.Laser cutting or wire EDM cutting | ＜14% Si/Al alloys, Copper alloys, Graphite and graphite composites, Green ceramics and carbides | Excellent resistance, good surface finish |
| W25 coarse grain size | 1.Average grain size:25μm
2.High diamond contentover90%
3.Laser cutting or wire EDM cutting | ＞14% Si/Al alloys, metal matrix composites, Bi-metals (aluminum/ cast iron), sintered ceramics and carbides | Long life, extremely high wear resistance |
Sizes Chart of RJ PCD Cutting Tool Blanks:
| Product Code | Angle(°) | Diameter(mm) | Thickness (mm) |
| SCT48 | 360 | 48 | 1.6/ 2.0/ 3.2 |
| SCT51 | 360 | 51 | 1.6/ 2.0/ 3.2 |
| SCT58 | 360 | 58 | 1.6/ 2.0/ 3.2 |
| SCT76 | 360 | 76 | 1.6/ 2.0/ 3.2 |
Note: The products can be manufactured per customer’s request as non-standard shapes such as round, rectangular, square, triangle, rhombus, sector and so on.
Product Tags:
|
|

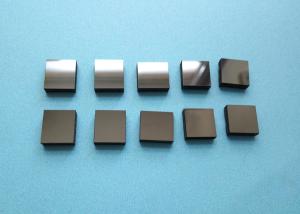

Plycrystalline Diamond PCD Cutting Tool Blanks 58mm Hardness 80-100 Aluminum Brass Images
|
